Copper Plate Earthing

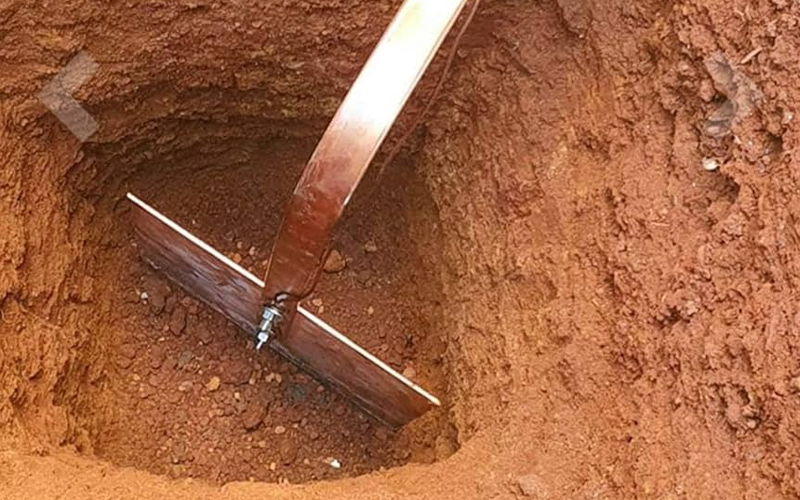

a copper plate is used as it is a great electrode due to high conductivity. The plate is located in the underground pit. The electrical system is connected with the plate through copper wires.

The Diagram of Plate Earthing typically illustrates this setup, showing the plate’s position in relation to the ground level and the conductors it connects. The Plate Earthing Diagram also often includes the dimensions of the plate.

In this technique, a copper plate is used as it is a great electrode due to high conductivity. The plate is located in the underground pit. The electrical system is connected with the plate through copper wires.
